Matrica HDMI Blustream C44-KIT

Šifra proizvoda: 38137, stanje skladišta: na upit

C44-KIT is a 4K HDCP 2.2 Matrix package, delivering  HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers.


  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Extends HDMI  up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR on all HDBaseT outputs
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 1U Design for 19" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant

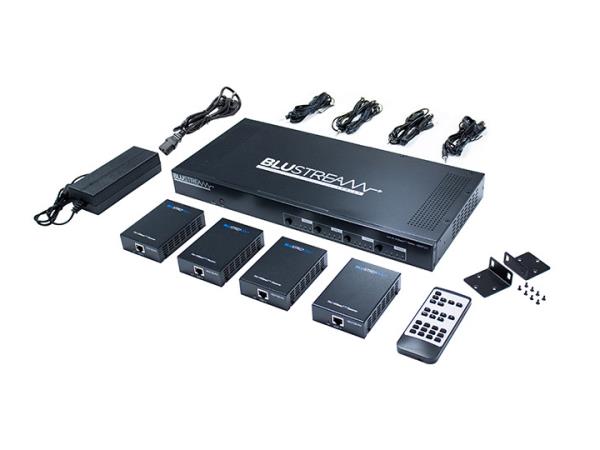

  • Supplied with 4x HEX70B-RX receivers



 Proizvođač Blustream
 Tip Matrični preklopnik
 Ulazi 4x HDMI
 Izlazi 1x HDMI, 4x HDBaseT
 Propusnost -
 Podržani signali do 4K
 Kontrola RS232, RJ45, IR
 Snaga -
 Napajanje 1x 24V/3.5A DC
 Dimenzije                            440x52x212 mm
 Težina 2,7 Kg
 Jamstvo 2 godine
Redovna cijena
Cijena bez PDV: na upit
Cijena sa PDV: na upit
Odobravamo
popuste na gotovinsko plaćanje
popuste za obrazovne i neprofitne organizacije
popuste na veću koliĉinu
popuste za daljnju prodaju
