Matrica HDMI Blustream CMX44AB

Šifra proizvoda: 38679, stanje skladišta: na upit
CMX44AB supports HDMI2.0 and HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.

  • Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
  • Supports HDMI2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently

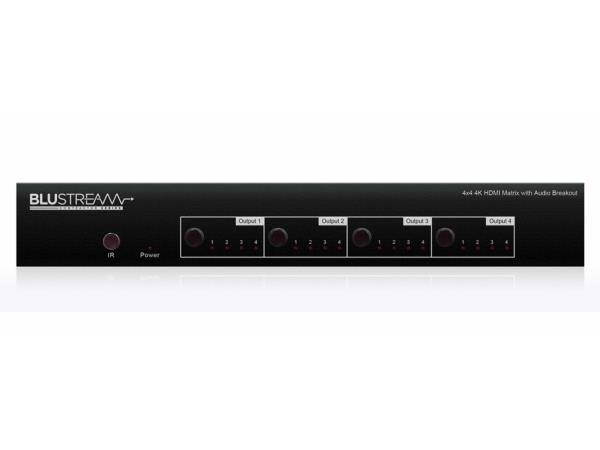

  • Control via front panel, IR and RS-232
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant


 Proizvođač Blustream
 Tip Matrični preklopnik

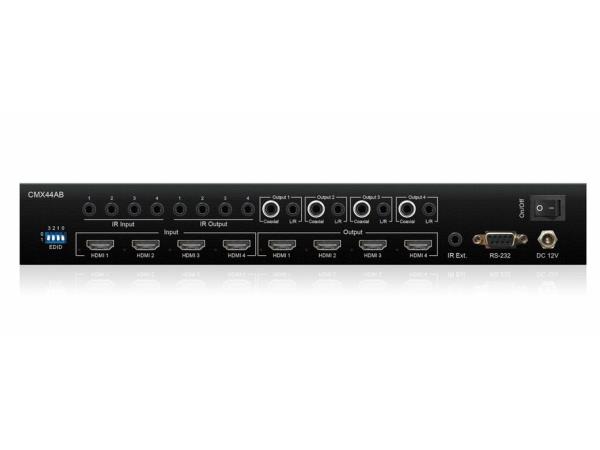

 Ulazi 4x HDMI, 4x IR
 Izlazi 4x HDMI, 4x Audio, 4x IR
 Propusnost -
 Podržani signali do 4K
 Kontrola RS232, RS485, RJ45, EDID
 Snaga -
 Napajanje 5V / 1A DC
 Dimenzije                            313x45x129 mm
 Težina 2,2 Kg
 Jamstvo 2 godine
