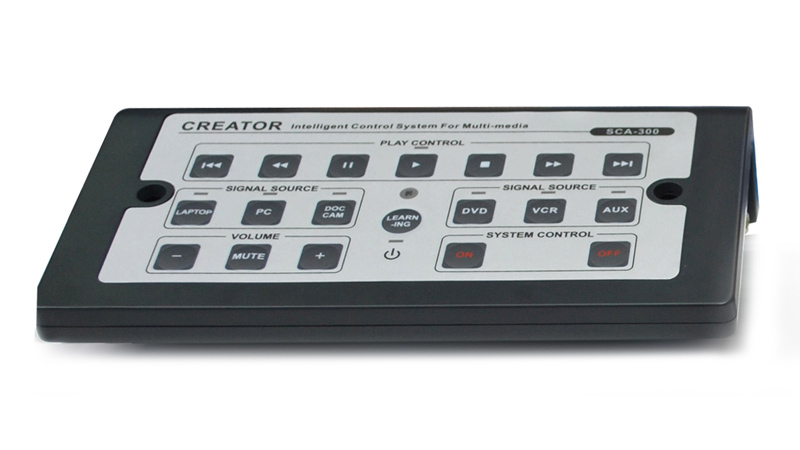

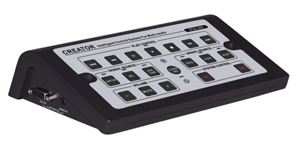

Kontrola uređaja putem IR i RS232 te priključna i preklopna funkcija. Ulazi: 3x VGA 15HDF, 3x Video, 5x Audio, 1x MIC. Izlazi: 1x VGA, 1xAudio

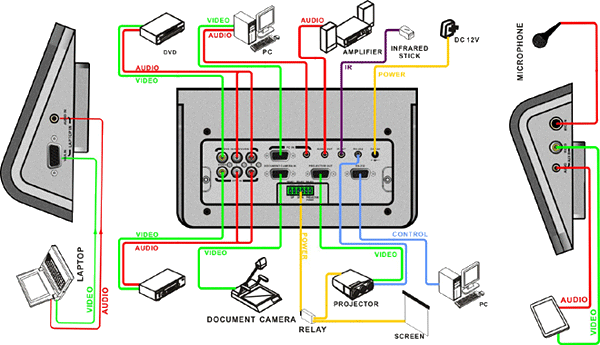

Control Ports: Com Ports: 1 RS232 (3.5mm) COM port to connect peripheral equipment as projector IR Ports: one IR (3.5mm) OUT port to control IR-control based peripheral equipment as DOC CAM, DVD, VCR, AUX, etc. PC Console Port: 1 DB9 female PC control port on the rear panel, support PC control via Management Software Integrated Scaling Switcher: Audio Switcher: 6 inputs(2 RCA interfaces +3 3.5mm stereo audio interfaces + 1 MIC);1 3.5mm output interface Visual Scaling Switcher: 6 inputs (3 RCA interfaces + 3 VGA HD interfaces) + 1 VGA HD output; support 12 most-common resolutions, up to 1920*1080@60Hz Independent Volume Control Module: Support independent volume for each channel Thirteen IR Programmable Control Keys Support 4*7+4=32 IR control keys for controlling DOC CAM,DVD,VCR,AUX. And 2 keys for projector. Built-in IR Learning Module Power: DC12V Software: Intelligent Education Control System Software
