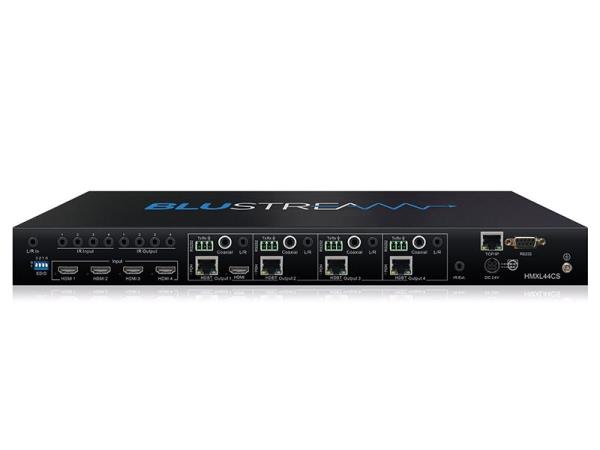

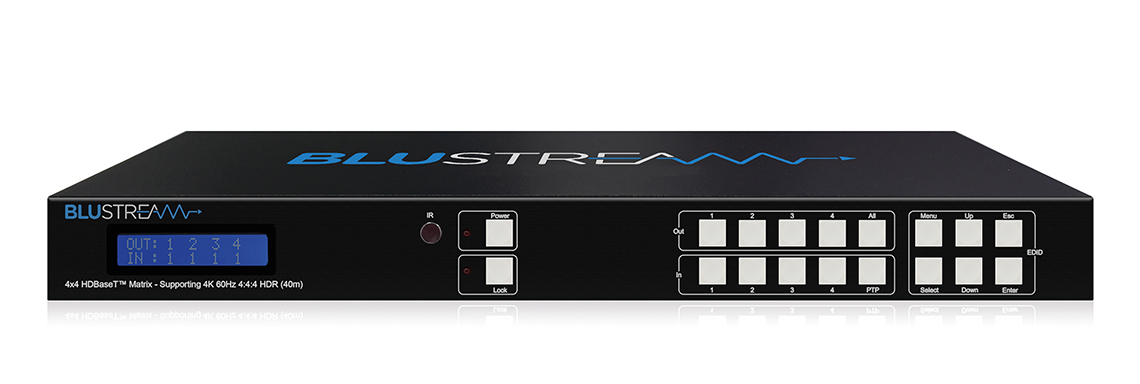

Matrica HDBaseT Blustream HMXL44CS-KIT

Šifra proizvoda: 38259, stanje skladišta: na upit

The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoC up to lengths of 70m over a single CAT cable.
The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix.

The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX receivers.

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently
Web interface module for control and configuration of the matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power supplied HDBaseT™ receivers
3rd Party drivers available for all major control brands
1U Design for 19" rack mount integration - mounting kit included
Advanced EDID management
HDCP 2.2 compliant

Proizvođač	Blustream
Tip	Matrični preklopnik
Ulazi	4x HDMI, 4x RS232, 4x IR
Izlazi	1x HDMI, 4x HDBaseT, 4x RS232, 4x IR, 4x audio
Propusnost	-
Podržani signali	do 4K
Kontrola	RS232, RS485, RJ45, EDID
Snaga	-
Napajanje	1x 24V/3.5A DC
Dimenzije	440x43x235 mm
Težina	2,8 Kg
Jamstvo	3 godine

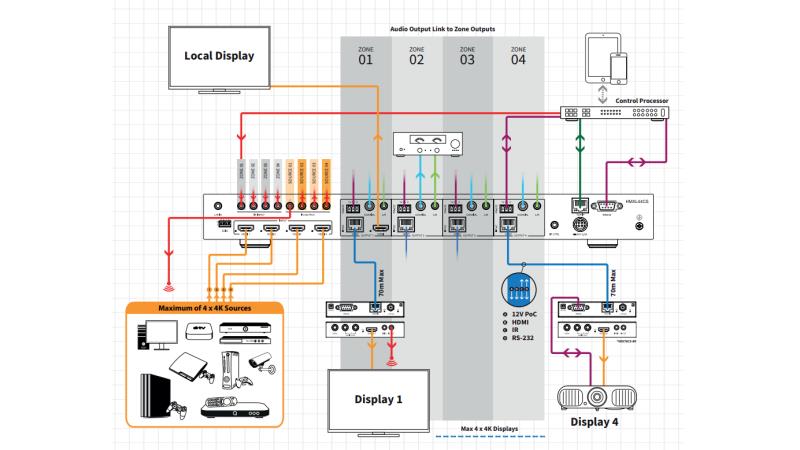

SHEMA-Matrica HDBaseT Blustream HMXL44CS-KIT
