4-Way HDMI&HDBaseT board Blustream PRO-OUT4HTCS

Šifra proizvoda: 40742, stanje skladišta: na upit

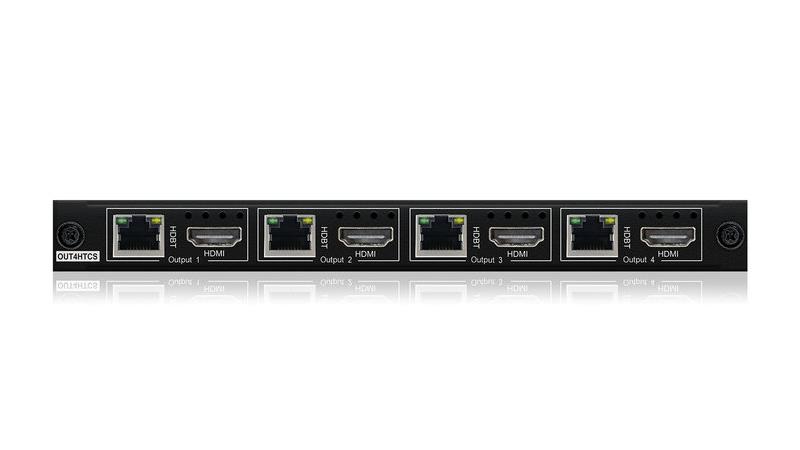

The PRO-OUT4HTCS output board offers 4 x dual HDBaseT™ outputs  for connection to a HDBaseT™ receiver and HDMI display per zone. Utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (1080p to 100m). Features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher definition displays. Also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Features 4 x simultaneous HDMI / HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ Receivers
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
Supports 4K 60Hz 4:4:4 UHD video up to 70m*

Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Extends HDMI 1080p video up to 100m
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Supports PoC to power Blustream HDBaseT™ Receivers
Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
HDCP 2.2 Support
To be used with the HEX100CS-RX Receivers

 Proizvođač Blustream
 Tip -
 Ulazi -
 Izlazi 4x HDMI, 4x HDBaseT
 Propusnost -
 Podržani signali do 4K
 Kontrola -
 Snaga -
 Napajanje -
 Dimenzije                            202x22x188 mm
 Težina 0,5 Kg
 Jamstvo 2 godine
