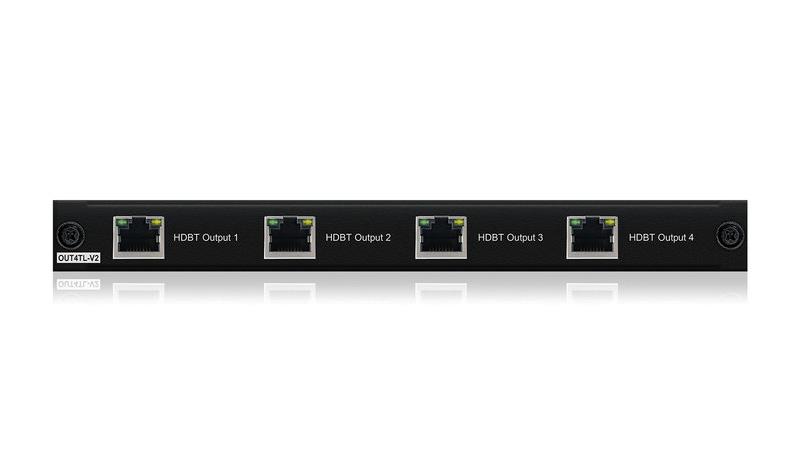

4-Way HDMI&HDBaseT board Blustream PRO-OUT4TL-V2

Šifra proizvoda: 40746, stanje skladišta: na upit
The PRO-OUT4TL-V2 output board offers 4 x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 40m (1080p to 70m). Features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. Also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Features 4 x HDBaseT™ outputs for connection to compatible HDBaseT™ Receivers
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
Supports 4K 60Hz 4:4:4 UHD video up to 40m*

Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Extends HDMI 1080p video up to 70m
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Supports PoC to power Blustream HDBaseT™ Receivers
Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
HDCP 2.2 Support
To be used with the HEX70CS-RX Receivers

 Proizvođač Blustream
 Tip -
 Ulazi -
 Izlazi 4x HDBaseT
 Propusnost -
 Podržani signali do 4K
 Kontrola -
 Snaga -
 Napajanje -
 Dimenzije                            202x22x188 mm
 Težina 0,5 Kg
 Jamstvo 2 godine
