Aten VP1421

Šifra proizvoda: 40367, stanje skladišta: na upit

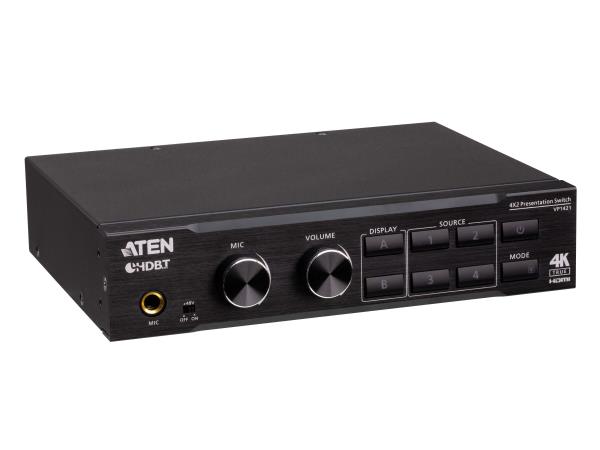

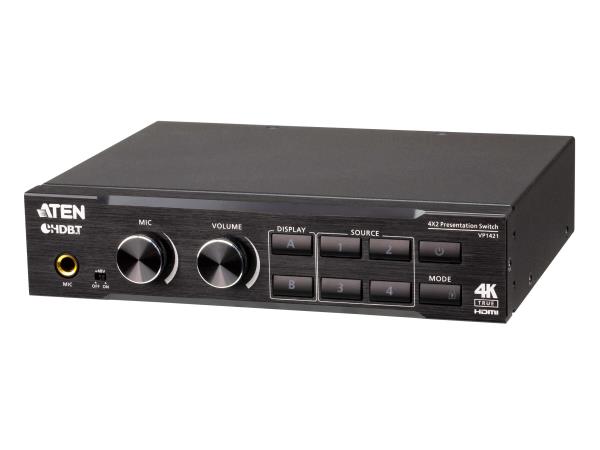

Aten VP1421 je prezentacijski matrični preklopnik/scaler, 4K rezolucija, automatsko preklapanje ulaznog signala, HDR, audio DSP, AD konverter, audio embedding /de-embedding, prioritetni mikrofon

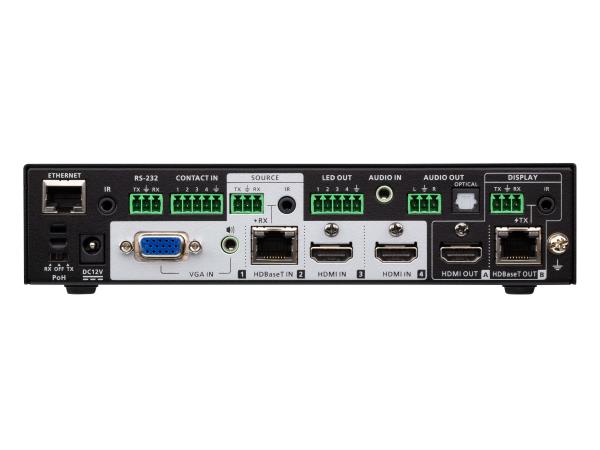

  • Analog/Digital AV Matrix Switching
    • Supports multi-format 4 Inputs – 2 HDMI, 1 HDBaseT, and 1 VGA inputs
    • 1 HDMI and 1 HDBaseT outputs
    • Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and optical audio outputs
    • Audio de-embedding – HDMI/HDBaseT audio can be extracted to stereo line out
    • Built-in Audio DSP – supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
    • Automatically reduces program audio when a microphone signal is detected
    • Auto switching – automatically detects and switches to a new source as soon as it is connecte

  • High-definition Video with Optimum Output
    • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT)
    • Supports 4K HDR
    • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant

  • Versatile, Streamlined Operation
    • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
    • Bi-directional RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
    • Supports stand-by mode for power saving and fast waking up
    • Consumer Electronics Control (CEC) support
    • Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad


 Proizvođač Aten
 Tip prezentacijski matrični preklopnik/scaler
 Ulazi 2x HDMI, 1x HDBaseT, 1x VGA
 Izlazi 1x HDMI, 1x HDBaseT
 Propusnost -
 Podržani signali do 4K, 4096 x 2160@60Hz (4:4:4)
 Kontrola 1x RS232, 1x IR, EDID, CEC, Web GUI Ethernet
 Snaga 14.93W
 Napajanje DC12V
 Dimenzije                            200x44x170 mm
 Težina 1,16 Kg
 Jamstvo 2 godine
