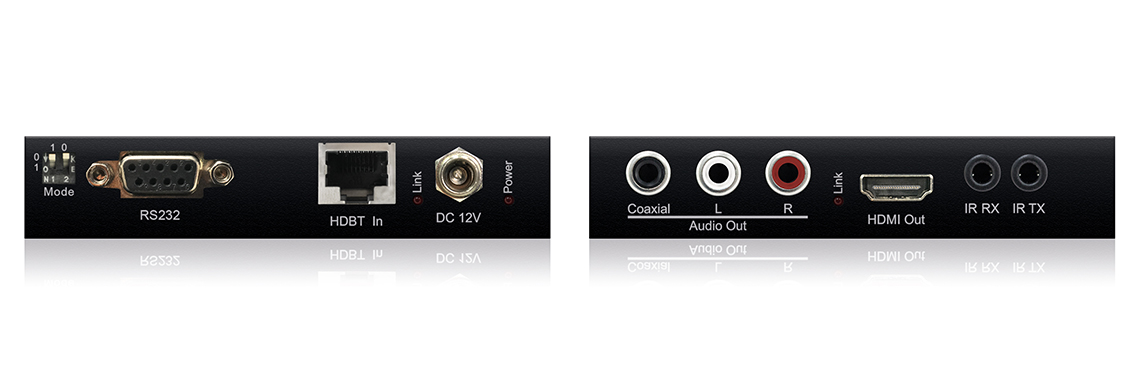

HDBaseT prijamnik za prijenos HDMI, IR i RS232 signala putem mreže, podržava CAT5/CAT6, udaljenost do 100m (4K60Hz 4:4:4 do 70m), dvosmjerni IR & RS-232, EDID postavke, Audio break-out izlaz na prijemniku, dvosmjerni PoH (PoE), HDCP2.2
•Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
•Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
•Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
•Supports 4K 60Hz 4:4:4 UHD video up to 70m
•Extends HDMI 1080p video up to 100m
•Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
•Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
•HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
•HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
•Supports bi-directional RS-232 pass through
•Supports bi-directional IR pass through
•Supplied with Blustream 5V IR receiver and emitter
•Advanced EDID management
•HDCP2.2 compliant
| Proizvođač |
Blustream |
|
| Tip |
HDMI-IR-RS232 twisted pair |
|
| Ulazi |
1X RJ45, 1x IR |
|
| Izlazi |
1x HDMI, 1x IR, 1x RS232 (Bi-directional), 2x Audio (L/R, Coax) |
|
| Propusnost |
- |
|
| Podržani signali |
4K UHD video do 70m, 1080p video do 100m |
|
| Kontrola |
- |
|
| Snaga |
12.7W |
|
| Napajanje |
12V / 2A DC, screw type connector |
|
| Dimenzije |
143x22x134 mm |
|
| Težina |
0,35 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
