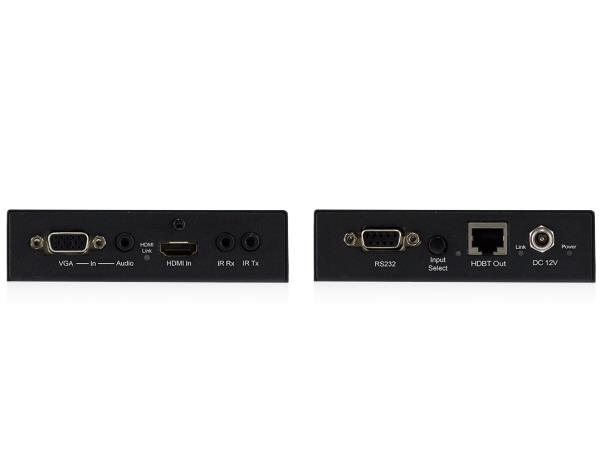

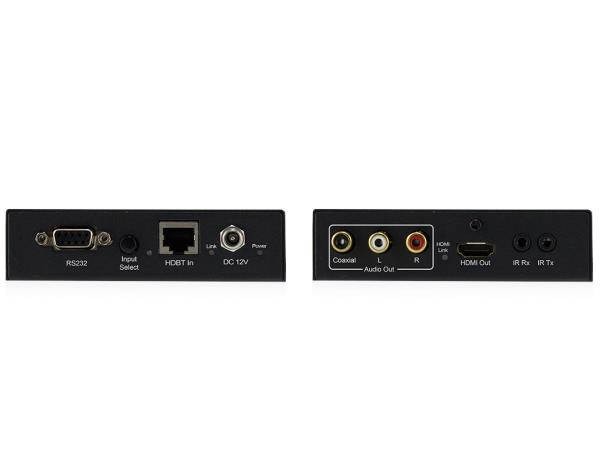

Komplet HDBaseT prijamnik i predajnik za prijenos HDMI, IR i VGA signala putem mreže, podržava CAT5/CAT6, udaljenost do 100m (4K do 70m), dvosmjerni IR, dvosmjerni PoH (PoE), odabir ulaza VGA/HDMI
•Extends HDMI and VGA/Audio up to a distance of 100m over single CAT cable •Auto signal sensing switches between HDMI and VGA/Audio inputs. Will display last input signal connected •Manual switching between inputs using toggle button or RS-232 control on either Transmitter or Receiver •Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) •Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions) •Supports full 3D signal display •Supports CEC pass through (HDMI only) •Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission •Supports bi-directional RS-232 pass through •Supports bi-directional IR from all input and output locations •Supplied with Blustream IR receiver and emitters •Supports bi-directional POH (Power over HDBaseT™) to power extenders from either transmitter or receiver end •HDCP compliant
| Proizvođač |
Blustream |
|
| Tip |
HDMI-VGA-IR-RS232 twisted pair |
|
| Ulazi |
Predajnik (1x HDMI, 1x VGA, 1x Audio, 1x IR, 1x RS232) Prijemnik (1x RJ45) |
|
| Izlazi |
Predajnik (1x RJ45) Prijemnik (1x HDMI, 2x Audio, 1x IR, 1x RS232) |
|
| Propusnost |
- |
|
| Podržani signali |
4K UHD video do 70m, 1080p video do 100m |
|
| Kontrola |
1x RS232, kontrolni panel |
|
| Snaga |
9.5W |
|
| Napajanje |
12V / 2A DC, screw type connector |
|
| Dimenzije |
135x30x115 mm |
|
| Težina |
0,35 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
