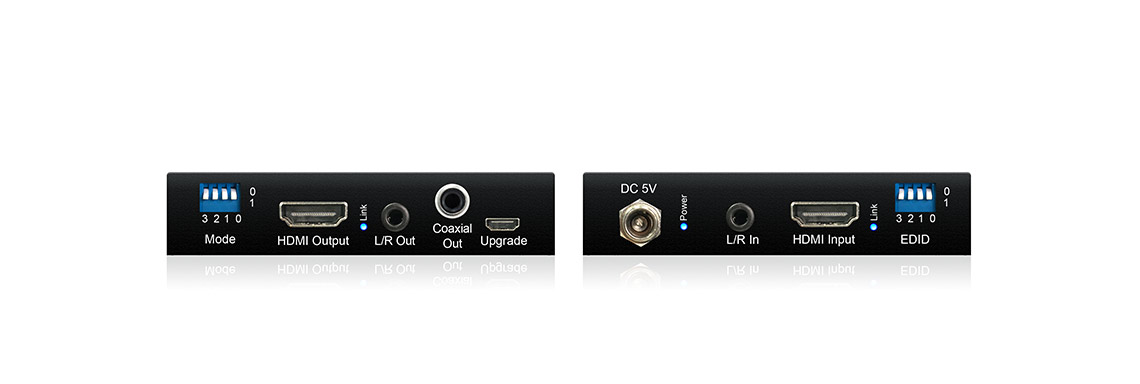

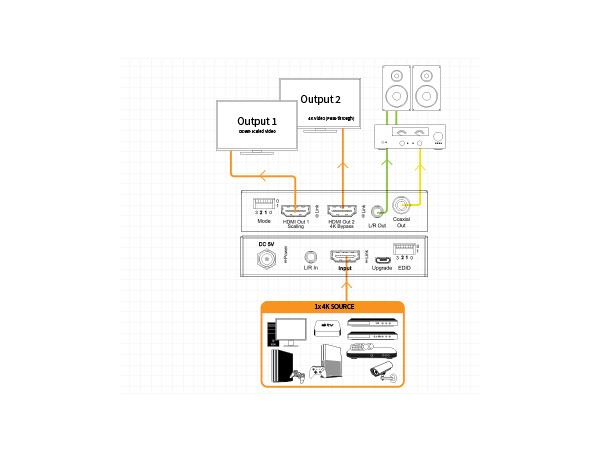

SC11HD-V2 is a HDMI 4K scaler, designed for installations with multiple displays that support different maximum video resolutions. The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.
The SC11HD-V2 supports down-scaling of 4K (inc HDR) video to 1080p and supports HDCP2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.
HDMI 4K video scaler
Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
Can be configured to work as either a HDMI audio de-embedder or audio embedder
HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (2ch PCM only)
Embed analogue L/R 2ch audio input onto HDMI output
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced EDID management
HDCP 2.2 support
CEC and ARC pass through
