8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch

Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.

Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations.

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles.

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license.

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed.

Rackmount versatility

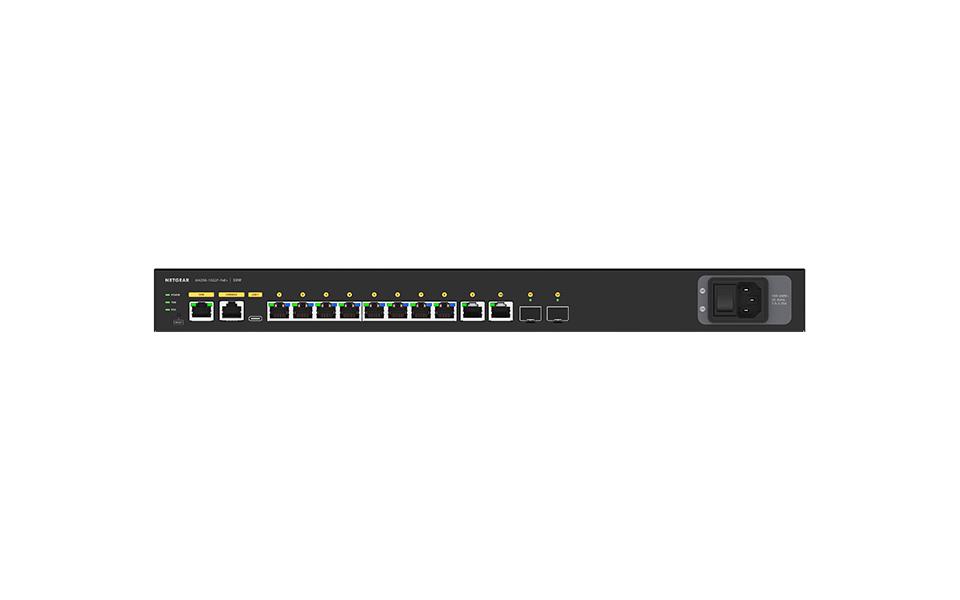

1U, 200mm deep rackmount with all power and Ethernet ports on the back.

Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables.

Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.

Adjustable fan functionality
Quiet mode with 30dB@25?C (all ports used, 125W PoE), fanless mode with max 25?C ambient, 35?C internal sensor and 80W PoE.

Multi-switch audio or single-switch video deployments
8x1G PoE+ with 125W PoE budget with 2x1G additional ports and 2xSFP 1G fiber uplinks.

Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models.

Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series.

Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2.
