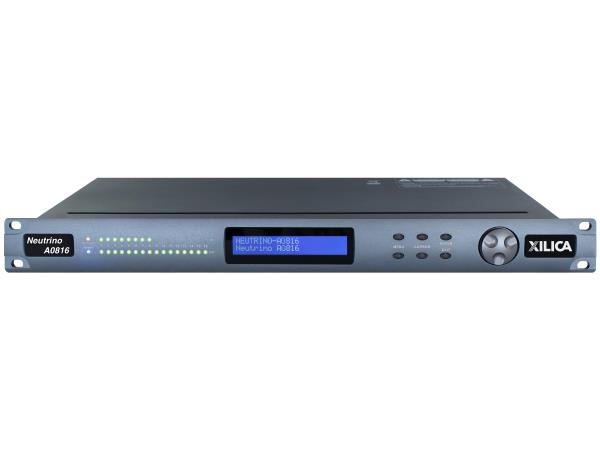

Integrirani IO procesor Xilica Neutrino A0816-N

Šifra proizvoda: 40539, stanje skladišta: na upit

Detaljni opis
Specifikacije

Product range designed around drag-and-drop simplicity, allowing users the ability to quickly configure the precise DSP system required by a customer
Features a range of I/O combinations to maximise choice and reduce unnecessary spend, including 8x8, 8x16, 16x8 and 16x6 - all with individual terminal block connections to permit rapid installation
Available factory-installed option cards include bi-directional Dante networking, AES/EBU digital audio via a DB25 connector, and eight channels of low-latency AEC
Neutrino products can be controlled and programmed over Ethernet using the Xilica Designer software, which allows universal programming of Dante-enabled products from manufacturers including Bose, Powersoft, Yamaha and others
Neutrino connects to a wide range of control interfaces, including: its own browser-based control panel; the XTouch iOS and Android app; wired Mini series wall controls; GPIO custom I/O; and third-party control systems such as Crestron and AMX

A winning combination of audio performance, ease of use and cost-efficiency is offered by Neutrino processors. Neutrino comprises a DHCP-enabled processor series available in four primary I/O model sizes – 8×8, 8×16, 16×8 and 16×16 with Mic/Line and 48V phantom power selection per input and premium grade mic pre-amps.

Neutrino is founded upon the dual-notion of drag-and-drop simplicity and the ability to configure the precise DSP design required by the customer. Accordingly, Neutrino’s drag-and-drop Xilica Designer software can be used to accommodate each project need, and incorporates a GUI that is designed to reduce DSP design time.

Neutrino products can be controlled in a number of ways: via Ethernet using the included Xilica Designer software GUI; with the GPIO ports; the optional NeuPanel Mini wall controls; iOS and Android devices via the free XTouch App; and any third-party controller.

The connectivity capability of the Neutrino models is customizable through a number of different variants. The Neutrino-N model versions provide Audinate Dante-enabled network audio capability.

This makes it possible to digitally transport 16×16 I/O channels of Dante network audio bi-directionally over Ethernet. Dante and analogue audio streams can be converted back to analogue or to Dante network audio using another Neutrino-N DSP, Rio Series interface, or other Dante-enabled device brands.

Examining other models in the series, the Neutrino-D model versions provide digital I/O capability of 8×8 AES/EBU channels, while Neutrino-ND combo model versions deliver a combination of Dante network audio I/O (16×16) and digital I/O (8×8 AES/EBU).

The Neutrino A1608-AEC model (Acoustic Echo Cancellation) provides up to eight AEC mic inputs – configured as four 2ch AEC modules in Xilica Designer. Finally, the Neutrino A1608-AEC-N combo model adds Dante enabled network audio to the AEC model.

Designed to suit a wealth of applications in the commercial integration market, the Neutrino series offers optimum ease of use and entry level drag & drop configured cost-efficiency for integrators and consultants.

Proizvođač	Xilica
Tip	/
Procesor	40-bit floating point
Sampling rate (uzorkovanje)	48kHz
Delay (podešenje kašnjenja)	3ms (AEC: 11ms)
Konekcije	8 x Mic /Line ulaza, 16 x izlaza, RJ45 Dante Ethernet, Phoenix Plug-in 3.5mm (included), RJ45 Ethernet,....
Napajanje	90-240 VAC (50-60Hz)
Dimenzije	483x44x229 mm
Težina	5 Kg
Jamstvo	24 mjeseci
