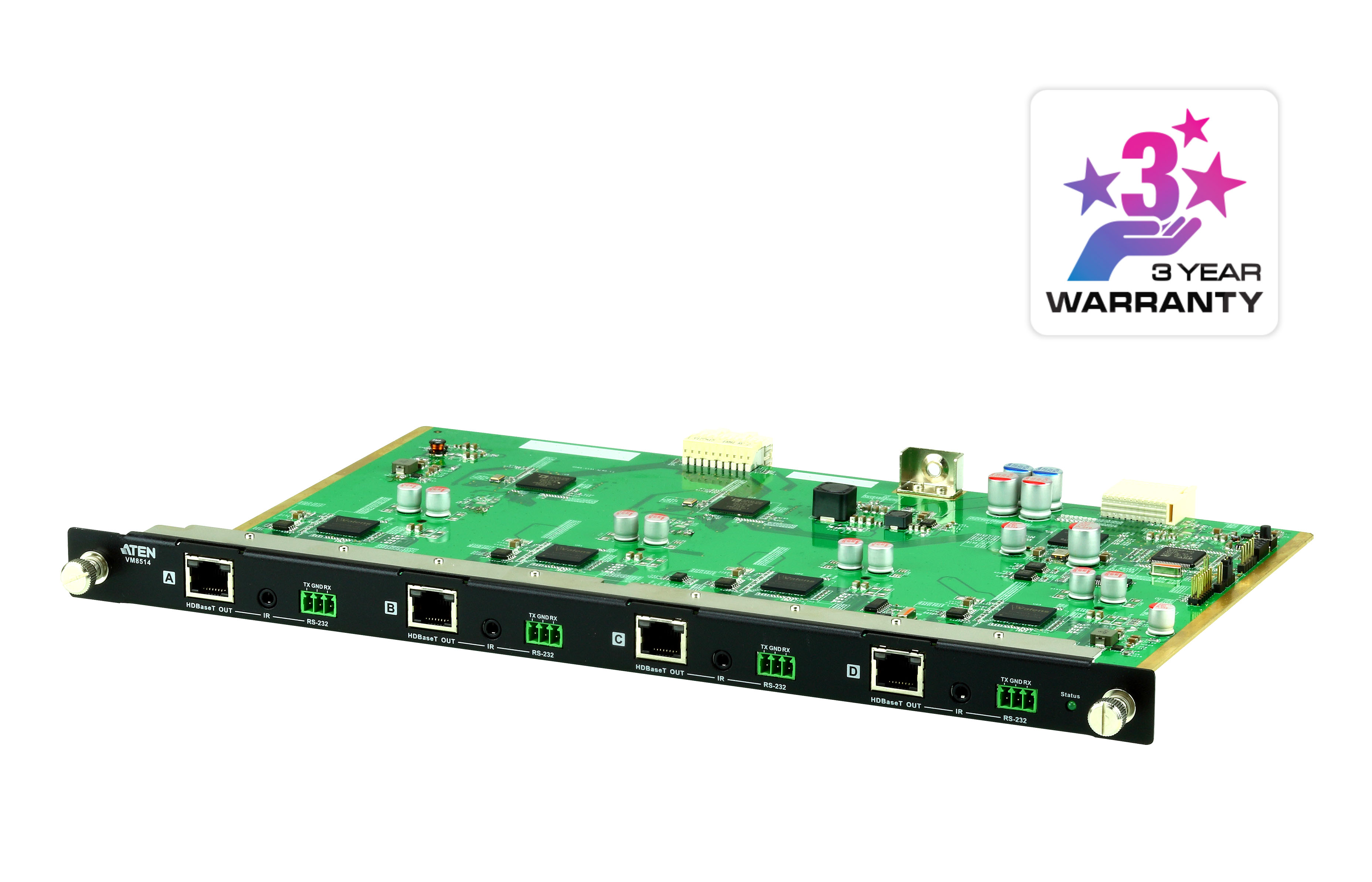

Izlazna ploča 4x HDBaseT Aten VM8514

Šifra proizvoda: 40329, stanje skladišta: na upit

Detaljni opis
Specifikacije

    4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
    Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
    HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
    HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
    Connected to VE805R/VE816R:
    • Seamless Switch™ – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
    • Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI
    Bi-directional IR channel – IR transmission is processed one direction at a time
    Hot-swappable design for easy integration of I/O boards

Proizvođač	Aten
Tip	konekcijska ploča za matrični preklopnik
Ulazi	-
Izlazi	4 x RJ-45 Female (Silver)
Propusnost	10.2 Gbps (3.4 Gbps per lane)
Podržani signali	do 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Kontrola	RS232, IR
Snaga	-
Napajanje	-
Dimenzije	238x23x352 mm
Težina	0,97 Kg
Jamstvo	3 godine

Redovna cijena

Cijena bez PDV:	na upit
Cijena sa PDV:	na upit

Odobravamo

popuste na gotovinsko plaćanje

popuste za obrazovne i neprofitne organizacije

popuste na veću koliĉinu

popuste za daljnju prodaju
