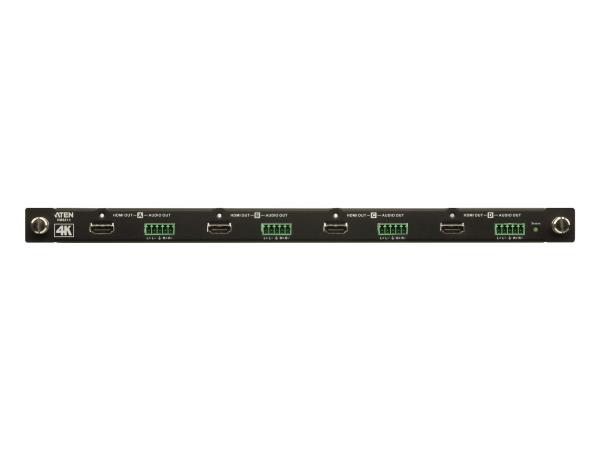

4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
Audio-enabled, HDMI audio can be extracted
4K Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via an intuitive web GUI*
EDID Expert –selects optimum EDID settings for smooth power-up and the highest quality display
HDMI (3D, Deep Color); HDCP 2.2 Compatible
Cable Quality Tester – examines the HDMI cable quality
FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Consumer Electronics Control (CEC) support
Proizvođač |
Aten |
|
Tip |
konekcijska ploča za matrični preklopnik |
|
Ulazi |
- |
|
Izlazi |
4x HDMI,4x Audio |
|
Propusnost |
15.2 Gbps (3.8Gbps per Lane) |
|
Podržani signali |
do 4K, UHD (3840 x 2160), DCI (4096 x 2160) 30 Hz (4:4:4) i 60 Hz (4:2:0) |
|
Kontrola |
- |
|
Snaga |
- |
|
Napajanje |
- |
|
Dimenzije |
352x23x238 mm |
|
Težina |
0,65 Kg |
|
Jamstvo |
3 godine |
|
|
|
|
