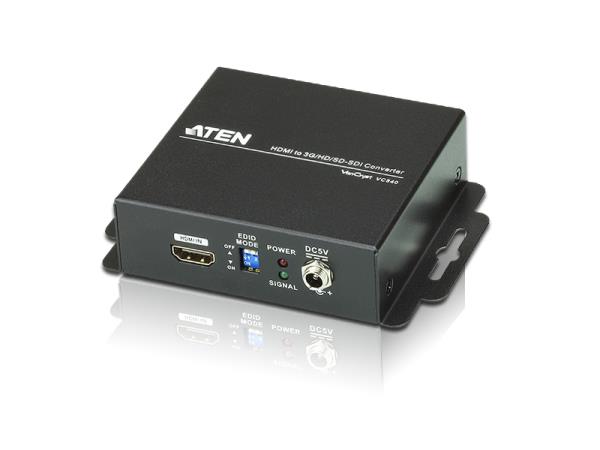

Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats:
• SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)
Video Support:
525i@59.96, 625i@50
720p@50/59.94/60
1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Supports 8 audio channels @ 48kHz rate
Offers 2 low-jitter SDI outputs for dual display
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications
Selectable EDID settings and EDID learning mode
| Proizvođač |
Aten |
|
| Tip |
Konverter |
|
| Ulazi |

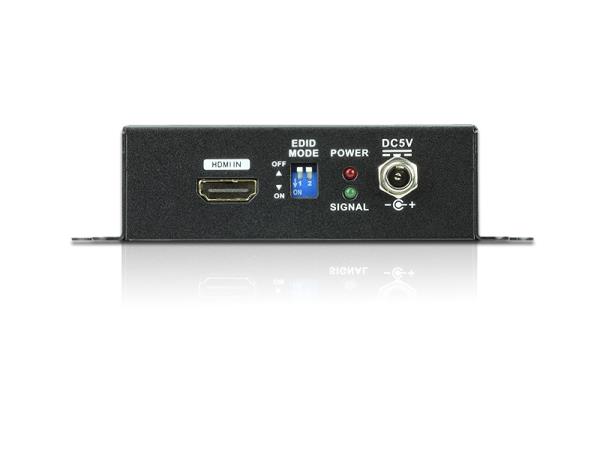

1 x HDMI Type A Female (Black) |
|
| Izlazi |

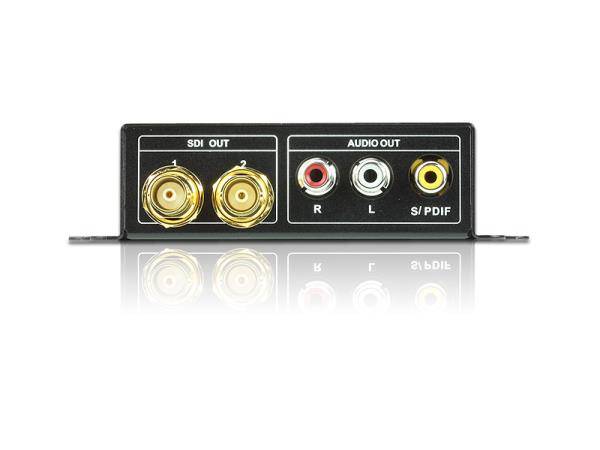

2 x BNC (Gold), 2 x RCA (Red/White), 1 x RCA (Yellow) |
|
| Propusnost |
2.97 Gbps |
|
| Podržani signali |
720p@50/59.94/60 Hz; 1080i@50/59.94/60 Hz; 1080p@23.97/24/25/29.97/30/50/59.94/60 Hz |
|
| Kontrola |
EDID |
|
| Snaga |
- |
|
| Napajanje |
-
|
|
| Dimenzije |
107x30,4x122 mm |
|
| Težina |
0,29 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
