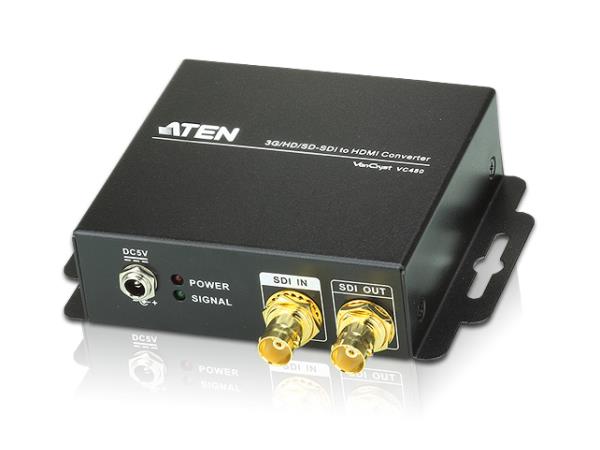

Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals

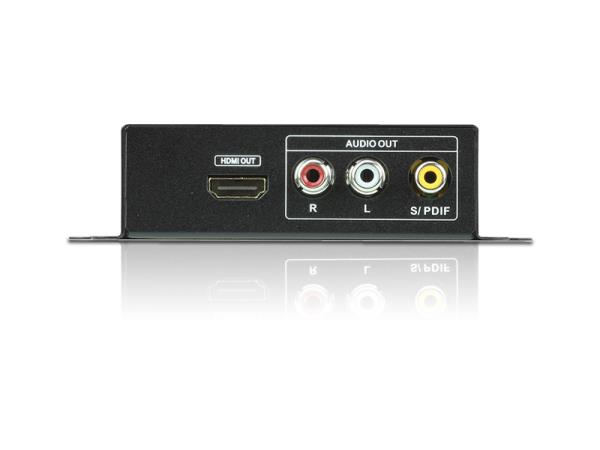

Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats:
• SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
Video Support:
525i@59.96, 625i@50
720p@23.98/24/25/29.94/30/50/59.94/60
1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Buffered loop-through output provides extended monitoring
Supports 8 audio channels @48kHz rate
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications
| Proizvođač |
Aten |
|
| Tip |
Razdjelnik |
|
| Ulazi |
1x SDI |
|
| Izlazi |
1x HDMI, 1xSDI, 2x Audio |
|
| Propusnost |
2.97 Gbps |
|
| Podržani signali |
3G-SDI /HD-SDI /SD-SDI |
|
| Kontrola |
- |
|
| Snaga |
- |
|
| Napajanje |
5,3V / 1A DC |
|
| Dimenzije |
123x30,5x108,7 mm |
|
| Težina |
0,29 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
