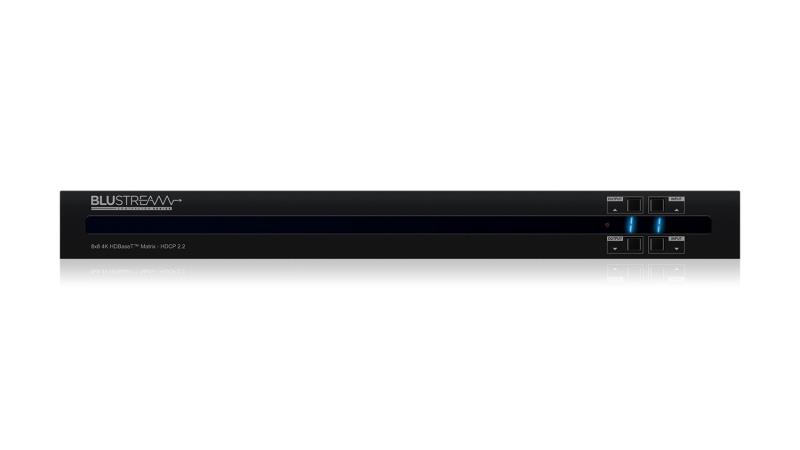

8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C88 is a 4K HDCP 2.2 Matrix delivering HDMI, bi-directional IR, and PoC (Power over Cable) up to lengths of 70m over a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module for control and configuration of the Matrix.
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Extends HDMI up to a distance of 70m over single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
Web interface module for control and configuration of the Matrix
Supports bi-directional IR on all HDBaseT™ outputs
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
3rd party drivers available for major control brands
Advanced EDID management
HDCP 2.2 compliant
| Proizvođač |
Blustream |
|
| Tip |
Matrični preklopnik |
|
| Ulazi |

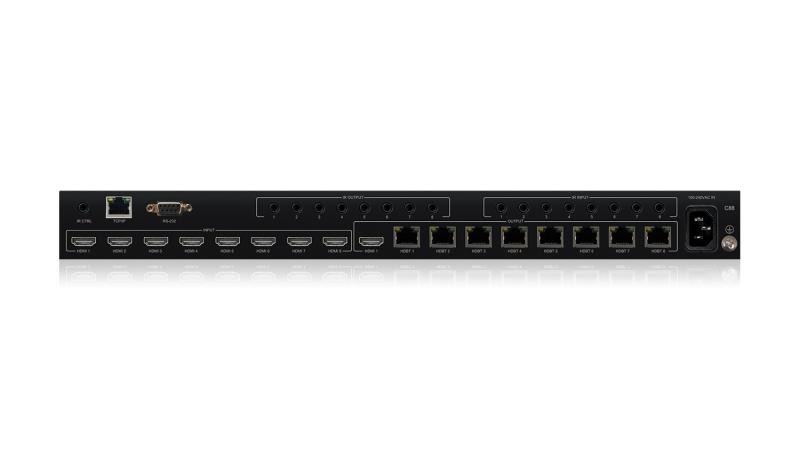

8xHDMI Type A, 9xIR, RS-232, RJ45 (TCP/IP) |
|
| Izlazi |
1xHDMI, 8xHDBaseT RJ45, 8xIR |
|
| Propusnost |
-
|
|
| Podržani signali |
do 4K 60Hz 4:2:0 |
|
| Kontrola |
TCP/IP, RS232, web GUI / App, IR, Front panel |
|
| Snaga |
-
|
|
| Napajanje |
100-240V AC |
|
| Dimenzije |
437x53x384 mm |
|
| Težina |
- |
|
| Jamstvo |
2 godine |
|
|
|
|
