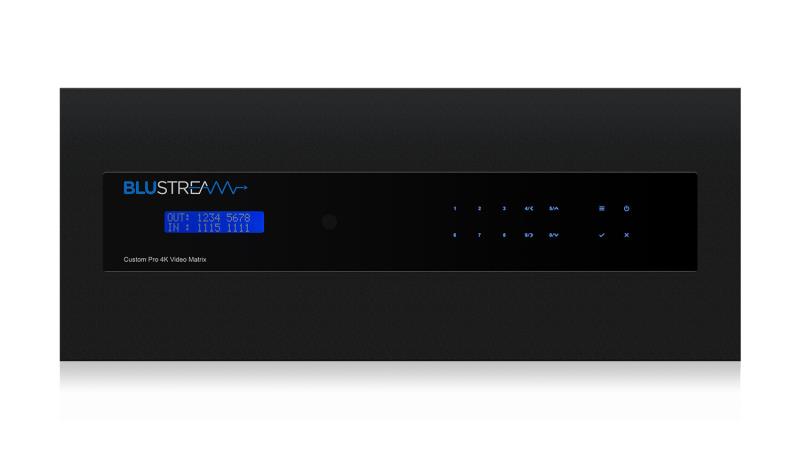

The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.
Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):
- 1080p@ 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
Extend 16 x IR outputs for routed control of local source equipment
16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ Receivers
Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ Receivers (PRO-8RS232 cards sold separately)
Audio breakout board with line-level volume control
Web browser interface for control and configuration of Matrix
Control of Matrix via front panel, RS-232, TCP/IP and web GUI / App
Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers
3rd Party drivers available for major commercial & residential control brands
Advanced EDID management
HDCP 2.2 compliant
Used with Blustream HEX100CS-RX Receivers (sold separately)
Used with Blustream HEX70CS-RX Receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)
| Proizvođač |
Blustream |
|
| Tip |
Matrični preklopnik |
|
| Ulazi |

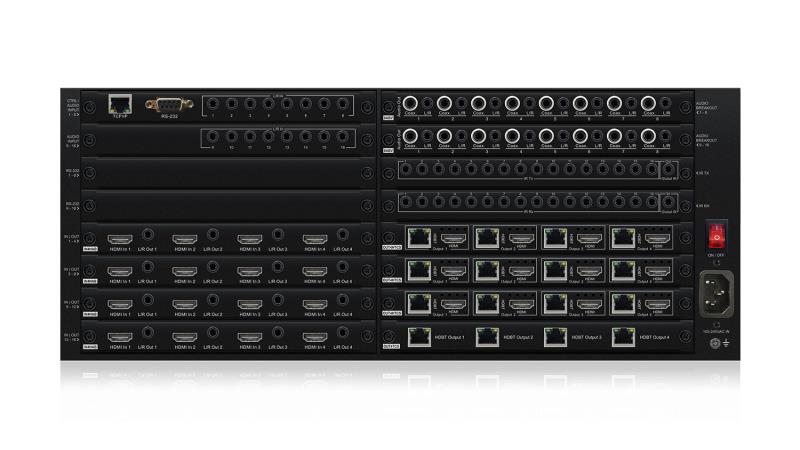

16xHDMI Type A, 16x3.5mm stereo audio, 16xIR, RS-232, RJ45 (TCP/IP), Global IR |
|
| Izlazi |
12xHDMI, 16xHDBaseT RJ45, 16x3.5mm stereo audio (Source), 16xIR, Global IR, 16x3.5mm stereo audio (Zone), 16xRCA Coaxial Digital |
|
| Propusnost |
18 Gbps |
|
| Podržani signali |
do 4K 60Hz 4:4:4 |
|
| Kontrola |
RS232, RJ45, IR, Front panel, web GUI / App |
|
| Snaga |
- |
|
| Napajanje |
100-240V AC |
|
| Dimenzije |
440x173x422 mm |
|
| Težina |
5 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
