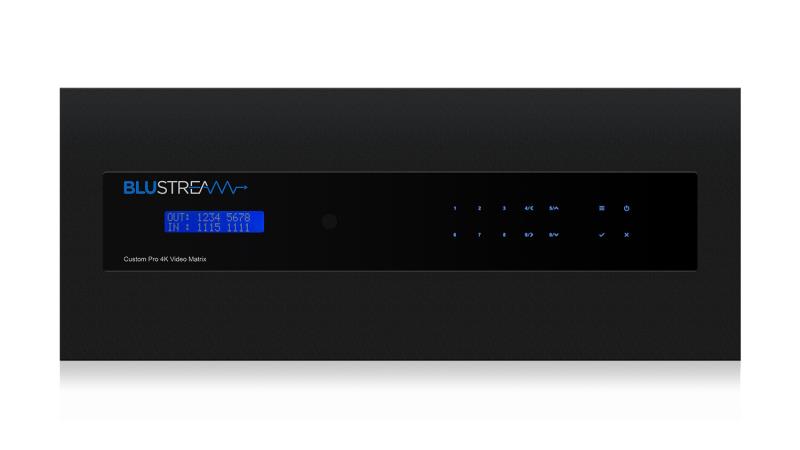

Our Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO48HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.
HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
Supports 4K HDR
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
Analogue audio input can be embedded onto any HDMI input
Web interface module for control and configuration of Matrix
Supports bi-directional IR
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
3rd Party drivers available for major control brands
2U Design for 19" rack mount integration - Mounting kit included
Advanced EDID management
HDCP 2.2 compliant
To be used with the HEX70CS-RX receivers
| Proizvođač |
Blustream |
|
| Tip |
Matrični preklopnik |
|
| Ulazi |

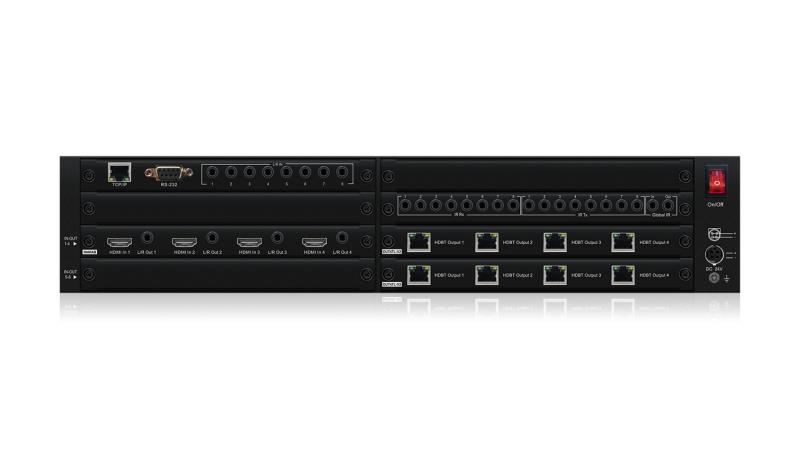

4xHDMI Type A, 8x3.5mm stereo audio, 8xIR, RS-232, RJ45 (TCP/IP), Global IR |
|
| Izlazi |
8xHDBaseT RJ45, 4x3.5mm stereo audio, 8xIR, Global IR |
|
| Propusnost |
18 Gbps |
|
| Podržani signali |
do 4K 60Hz 4:4:4 |
|
| Kontrola |
TCP/IP, RS232, IOS / Android app, IR, prednji panel |
|
| Snaga |
- |
|
| Napajanje |
24V/8A DC |
|
| Dimenzije |
440x173x422 mm |
|
| Težina |
5 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
