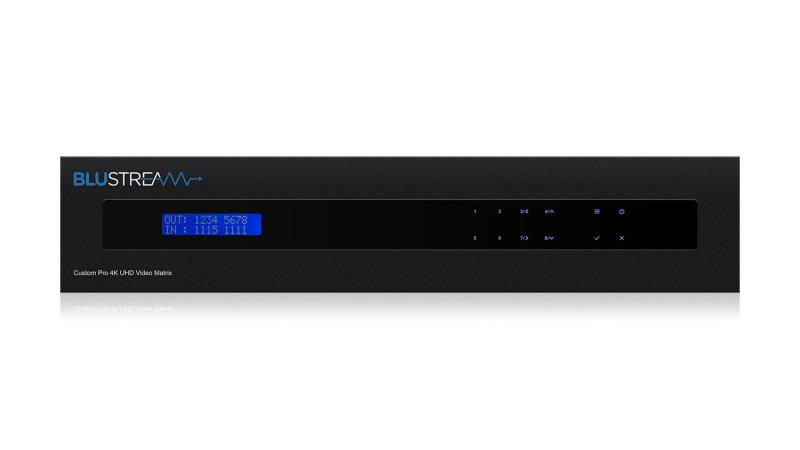

Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including 8 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.
8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
Analogue audio input can be embedded onto any HDMI input
Web interface module for control and configuration of Matrix
Supports bi-directional IR
Supplied with Blustream IR Receivers and Emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ Receivers
3rd Party drivers available for major control brands
2U Design for 19" rack mount integration - Mounting kit included
Advanced EDID management
HDCP 2.2 compliant
To be used with the HEX70CS-RX Receivers
| Proizvođač |
Blustream |
|
| Tip |
Matrični preklopnik |
|
| Ulazi |

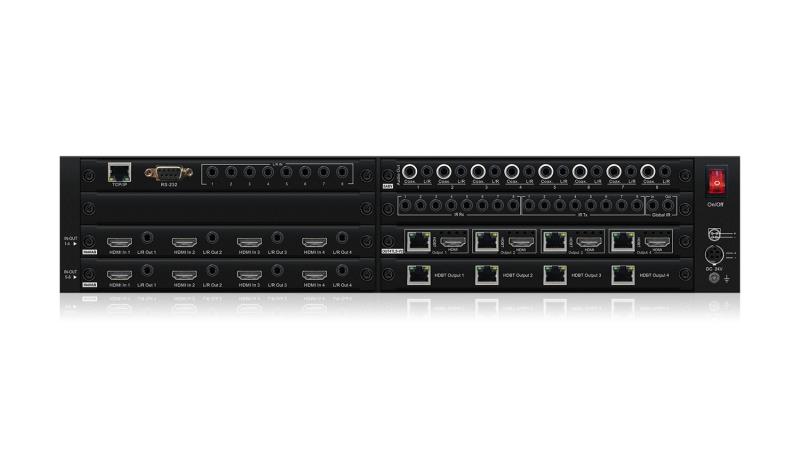

8xHDMI Type A, 8x3.5mm stereo audio, 8xIR, RS-232, RJ45 (TCP/IP), Global IR |
|
| Izlazi |
4xHDMI Type A, 8xHDBaseT RJ45, 8x3.5mm stereo audio, 8xIR, Global IR, 8x3.5mm stereo audio (Zone), 8xRCA Coaxial Digital |
|
| Propusnost |
18 Gbps |
|
| Podržani signali |
do 4K 60Hz 4:4:4 |
|
| Kontrola |
TCP/IP, RS232, IOS / Android app, IR, prednji panel |
|
| Snaga |
- |
|
| Napajanje |
24V/8A DC |
|
| Dimenzije |
440x87x282 mm |
|
| Težina |
5 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
