HDMI/VGA 4>4, (4 Ulaza, 4 Izlaza), 4K HDMI seamless Matrix and scaler

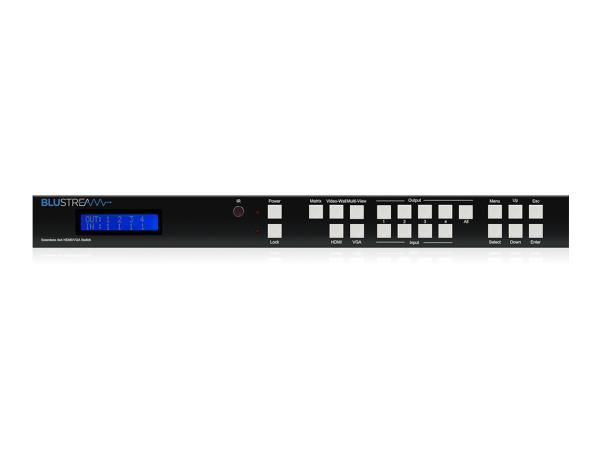

MX44VW 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes. The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.
Proizvođač |
Blustream |
|
Tip |
Matrični preklopnik |
|

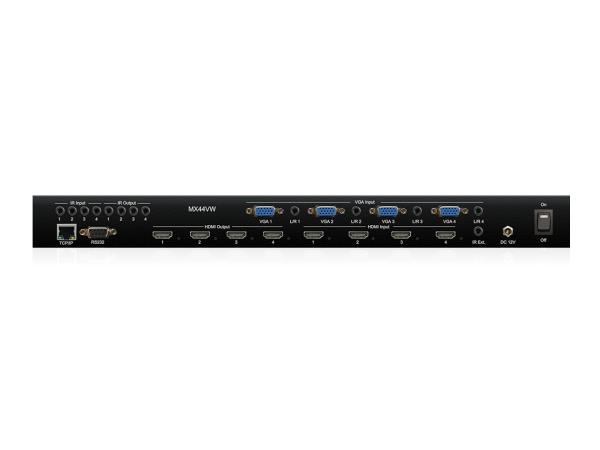

Ulazi |
4x HDMI, 4xVGA, 4x Audio |
|
Izlazi |
4x HDMI |
|
Propusnost |
- |
|
Podržani signali |
do 4K |
|
Kontrola |
RS232, RS485, RJ45, EDID |
|
Snaga |
- |
|
Napajanje |
5V / 1A DC |
|
Dimenzije |
285x45x145 mm |
|
Težina |
1,3 Kg |
|
Jamstvo |
2 godine |
|
|
|
|
