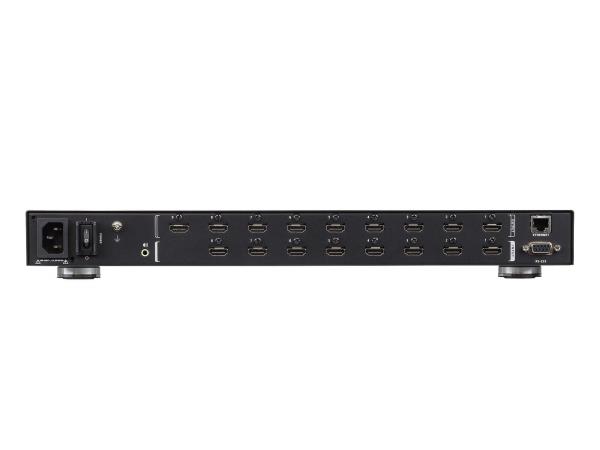

8 x 9 HDMI input/output connections

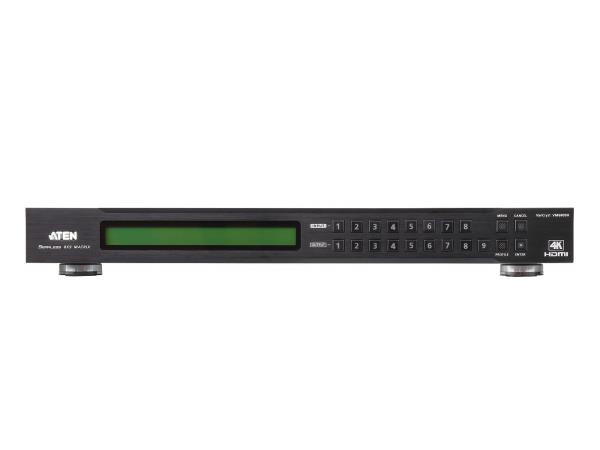

Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web GUI or Telnet
4K Scaler – features a 4K video scaling function to convert input resolutions to the display’s native resolutions
Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
4K Video Wall using Lower-Resolution Displays – split a 4K signal to four 1080p displays or nine 720p displays to form a 2x2 or 3x3 4K video wall
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
Consumer Electronics Control (CEC) supported*
Audio-enabled, HDMI audio can be extracted to stereo audio
ESD protection for HDMI
Rack-mountable (1U design)
| Proizvođač |
Aten |
|
| Tip |
Matrični HDMI preklopnik |
|
| Ulazi |
8x HDMI 2.2 |
|
| Izlazi |
9x HDMI 2.2, 1x Audio |
|
| Propusnost |
10.2 Gbps (3.40 Gbps per lane) |
|
| Podržani signali |
do 4K, 4096x2160/3840x2160 @60Hz (4:2:0); 4096x2160/3840x2160 @30Hz (4:4:4) |
|
| Kontrola |
EDID, IR, RS232, WEB-GUI |
|
| Snaga |
- |
|
| Napajanje |
AC220V:78.1W:366BTU |
|
| Dimenzije |
432x44x450 mm |
|
| Težina |
7 Kg |
|
| Jamstvo |
2 godine |
|
|
|
|
